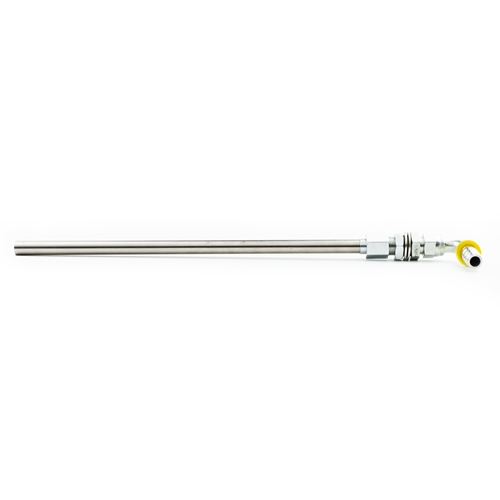

Driven Diesel 5/8" Fuel Tank Pickup

Part Number: DD-58-Pickup
Availability: In Stock
Instructions: (Adobe Reader required)
Price: $74.95
Diesel pickup owners can upgrade their fuel tank pickup with one of our universal, extra large 5/8"x17" pickup tube assemblies. This 5/8" pickup assembly was designed to be used with the Driven Diesel High Volume Fuel Delivery System and is the ideal size if you are building your own fuel delivery system using any large aftermarket fuel pump, or even a "Dual Bosch Pump" setup.

The Driven Diesel 5/8" Pickup Assembly includes:
• A New 16" Long T-304 S.S. Pickup Tube *
• A Steel Tube Nut and Sleeve
• Steel Bulkhead Fitting with Sealing Washers
• 90° 5/8" (#10) Push-Lok Hose End.
• Bulkhead Fitting and Tube Extend 17" Down From Top of Tank

This upgrade completely eliminates the stock pickup assembly from the fuel path.

INSTALLATION NOTE: The Driven Diesel 5/8" Pickup Tube is INTENTIONALLY made long. From the mounting surface, our pickup tube extends 17" down into the fuel tank. This makes the installation a "Cut to Fit" operation, but also allows for use in fuel tanks of different depths. This extra length also allows our 5/8" to be positioned over a aftermarket Fuel Tank Sump so that it is always pickup up fuel in the lowest part of the fuel tank.

INSTALLATION INSTRUCTIONS NOTE: This product was originally developed for use with 99-03 7.3L fuel system kits, so the included instructions include steps specific to that application. In reality, this product can be used universally on any vehicle that can accept a 17" or shorter pickup tube from the top of the fuel tank. The included instructions can be used as a guide for correctly installing the pickup tube assembly into any fuel tank, but the removal and reinstallation or any other vehicle specific steps will vary for different vehicles and will not be covered by the included installation instructions.

APPLICATION NOTE: While this product was not intended for use with the stock fuel pump, it can be if you are preparing to go to a larger pump at a later time. If you intend to continue running the stock fuel pump and are looking for pre-pump fuel system modifications, check out the PRE-PUMP /TANK KIT.

* - We make every attempt possible to source and use as much U.S. made product/material as we possibly long as doing so doesn't sacrifice the quality of the final product. Items marked with a * above have been modified or assembled by U.S. workers in a U.S. shop. Items marked with ** above were ENTIRELY produced from U.S. material, in U.S. shops, by U.S. workers. We can't always control where every component of one of our products comes from, but you count on us to keep looking for ways to increase the % of American Made parts and materials in the products that we produce.
