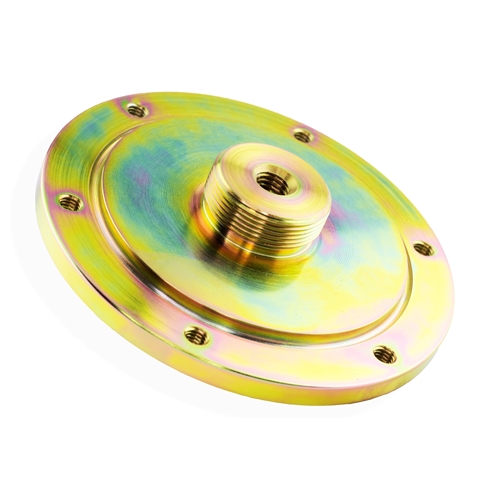

Cummins Fan Hub Adapter

This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.
Part Number: GOS-FANHUB
Availability: In Stock
Regular Price: $199.95
On Sale Now: $179.96
Add New Fan Hub Bearing $119.95
THIS PRODUCT DOES NOT FIT 2002 AND OLDER 12 AND 24 VALVE ENGINES!

NOW AVAILABLE PRE-ASSEMBLED - CLICK HERE!

The GOS Fan Hub Adapter was originally developed for customers swapping a Cummins engine into a non-Dodge chassis. See the notes and information below for fan clutch and fan blade selection in a conversion application.

CUMMINS CONVERSION (COMMON RAIL) CUSTOMERS - Using the stock Dodge Common Rail electronic engine fan in a Cummins conversion project can be a real hassle. Many conversion owners have found that keeping the engine cool with the Dodge electronic fan can be quite challenging. This adapter hub from GOS Performance will allow the use of a standard mechanical fan clutch (Ford) and fan on your Common Rail Cummins engine. This eliminates messing around with electronic controls and provides a much more reliable "mechanical" solution to cooling your conversion engine.

We recommend using the Ford 1994-1997 Powerstroke Diesel Fan Clutch and the Ford 6.0L Fan (23.25" Diameter). We have tested a number of fan clutch brands and had the best luck with OEM Ford units (hard to find, older, good working used models worked best) and those from GMB. Your mileage may vary, but it is safe to say that even some brand new clutches do not perform as well as some old/used Ford units.

While it may be possible to fit the larger Dodge fan (26" Diameter) into some conversions, we can NOT provide you with information about doing so. It is YOUR RESPONSIBILITY to measure your clearances and order the fan that will best fit your application.

IN EITHER CASE, we HIGHLY RECOMMEND replacing the bearing when changing the fan hub. Check the "Related Products" section below for details about the correct replacement bearing for this hub.

_________________________________________________________________

2003-2018 DODGE COMMON RAIL CUMMINS OWNERS - Due to the frequent problems with the OEM electronic fan clutch, you may be interested in switching to a good mechanical clutch solution. This adapter will allow you to make this change. You will need a mechanical fan clutch from a 1994-1997 Ford Powerstroke Diesel Pickup (see recommendations above), available in several brands from your local auto parts suppliers. Check the list below for the necessary parts combinations. In order to use your existing engine fan blade, you must have the 6-Bolt blade assembly (typically found on 03-08 trucks only). If you have the 4-Bolt blade assembly, you will need to purchase the fan blade as well (available from your local Dodge dealership). Please see the important notes below!

   REQUIRED PARTS (by vehicle):

   • 2003-2007 5.9L COMMON RAIL - Dodge Pickup
       (1) This Assembled Cummins Fan Hub Adapter
       (1) Ford 94-97 Fan Clutch (see recommendations above)
       Your Stock 6-Bolt Fan Blade

   • 2007-2018 6.7L COMMON RAIL - Dodge Pickup
       (1) This Cummins Fan Hub Adapter
       (1) Ford 94-97 Fan Clutch (see recommendations above)
         EITHER
            Your Stock 6-Bolt Fan Blade
         OR
            (1) 5.9L Cummins Engine Fan (available from Dodge)

IMPORTANT NOTES:

Removing the Electronic Fan Clutch from your 2003-2018 Dodge Cummins Pickup WILL leave an error code in the computer. In our experience, this does not typically trigger the "Check Engine Light", but the soft code will always be present. At this time, we are not aware of any way to disable this code.

On some occasions, particularly in warmer climates, we have gotten reports of issues where the A/C will blow warm at idle or low engine speeds. There are several things to look at in these situations.

A/C Performance Factors:

  • This product was designed around the Ford cooling stack (Cummins engine in Ford chassis). The Ford cooling stack is sealed around the edges better than the Dodge stack. This results in better air flow control, which improves heating of the fan clutch (more positive operation) as well as helps the fan pull more air across the component that is farthest from the fan blade (A/C condenser)
  • It is not uncommon for older trucks to have dirt and debris building up in the cooling stack in the front of the vehicle. Anything that affects air flow across the stack will have an impact on low speed A/C operation.
  • Condition of all of the A/C components, particularly on older trucks, can be a factor.
  • Your factory computer controlled fan clutch can be commanded to increase fan speed by the computer when the A/C is turned on, even at low engine speeds...a mechanical fan clutch operates entirely on temperature and airflow across the front of the clutch.
  • An electric helper fan on the front of the A/C condenser can be used to remedy the issue with low speed A/C performance.

We are not responsible for any A/C performance issues. This product is not returnable once installed.

Customer Reviews

(5.00)stars out of 5
# of Ratings: 6
1. on 8/15/2023, said:
5 stars out of 5
On my 2018 cab/chassis I used this hub with HAYDEN 2835 Severe Duty fan clutch and SKP SK959919 fan. I had to buy 6x 5/16x5/8in bolts as the fan and clutch didn't come with them. This has totally changed the why the cooling system acts. Whey pulling load up a grade with the electrically controlled fan I would fit over 220F pretty regularly. Now it hardly gets over 205F and falls back to 188F very quickly. I will probably be installing a higher temp thermostat. Yes it is a little loader but not as load as the old fan when fully engauged.
Was this comment helpful?
(1 people found this comment helpful, 0 did not)
2. on 8/27/2019, said:
5 stars out of 5
Installed on a 2008 Ram 6.7. Used stock fan. Install was straightforward and a definite upgrade. No more wiring harness getting stuck in the fan. Truck runs 5 - 10 degrees cooler when towing our 30' travel trailer. I definitely recommend this product!
Was this comment helpful?
(26 people found this comment helpful, 2 did not)
3. on 4/26/2018, said:
5 stars out of 5
Best upgrade to cool a Cummins. Looked at everything and was immediately drawn to this.
Was this comment helpful?
(14 people found this comment helpful, 1 did not)
4. on 10/11/2017, said:
5 stars out of 5
This worked perfect on my 2004.5 Ram Cummins. Easily installed with a vise and ball joint press. With my built trans and triple disc torque converter my trans fluid temps would get pretty hot in traffic. The electric OEM fan clutch just didn't blow enough for the triple digit heat down here in South Texas. The electric auxiliary fan I had also added didn't even help much and I was able to completely remove it after switching to the OBS fan clutch thanks to this adapter! Best money I've spent on my rig! With a fan pulley holding tool and a 48mm fan wrench I can pull my fan and clutch off now in a matter of seconds to gain more working access to swap water pumps, change belts, etc. There are just so many perks to this fan conversion. Quality is top notch and the customer service was great! I'm telling everybody that I rope with that hauls there horses in heavy trailers to rodeos about this product. It'll get me to many rodeos. Thanks Strictly Diesel!
Was this comment helpful?
(23 people found this comment helpful, 1 did not)
5. on 5/10/2017, said:
5 stars out of 5
ordered in the parts to swap out the electric fan clutch to the ford obs clutch on my 2005 ram with cummins 5.9 cr. update was easy peasy, a vise and a ball joint press did it all. 2 hours start to finish. a/c blows cold at start up, no complaints. would recommend this over the electric fan kit especially if you live in hot climate. change your thermostat when you do this.
Was this comment helpful?
(22 people found this comment helpful, 2 did not)
6. on 3/24/2017, said:
5 stars out of 5
This is a great upgrade to do if you find yourself in the same position that I was in with my 2006 dodge Cummins 5.9 clutch wires getting cut by the fan. This adapter with the ford mechanical clutch is a great problem free set up that goes together very easily. ( just make sure you have access to a press) The quality of the adapter is great. I would say I would definitely buy this again, but hopefully this is the last fan clutch I'll ever have to do in this truck! Great job Strictly!
Was this comment helpful?
(19 people found this comment helpful, 1 did not)
Showing comments 1-6 of 6
Frequently Asked Questions

Cummins Fan Hub Adapter fits the following vehicle(s):

  • 2003 Dodge Ram 2500/3500 CR 5.9L
  • 2004 Dodge Ram 2500/3500 CR 5.9L
  • 2004.5 Dodge Ram 2500/3500 CR 5.9L
  • 2005 Dodge Ram 2500/3500 CR 5.9L
  • 2006 Dodge Ram 2500/3500 CR 5.9L
  • 2007 Dodge Ram 2500/3500 CR 5.9L
  • 2007.5 Dodge Ram 2500/3500 CR 6.7L
  • 2008 Dodge Ram 2500/3500 CR 6.7L
  • 2009 Dodge Ram 2500/3500 CR 6.7L
  • 2010 Dodge Ram 2500/3500 CR 6.7L
  • 2011 Dodge Ram 2500/3500 CR 6.7L
  • 2012 Dodge Ram 2500/3500 CR 6.7L
  • 2013 Dodge Ram 2500/3500 CR 6.7L
  • 2014 Dodge Ram 2500/3500 CR 6.7L
  • 2015 Dodge Ram 2500/3500 CR 6.7L
  • 2016 Dodge Ram 2500/3500 CR 6.7L
  • 2017 Dodge Ram 2500/3500 CR 6.7L
  • 2018 Dodge Ram 2500/3500 CR 6.7L
