BLACK FRIDAY → Driven Diesel 7.3L Fuel Bowl Delete Regulated Return Fuel System Kit

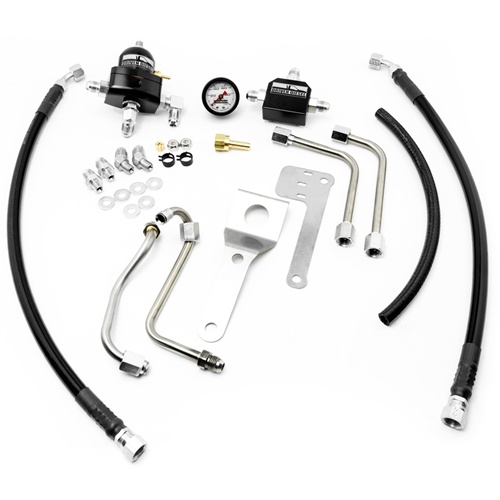

Driven Diesel 7.3L Fuel Bowl Delete Regulated Return Fuel System Kit

7.3L FUEL SYSTEM FLOW DIAGRAMS (opens in new window)
This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.
Part Number: DD-73FS-FBD-RRK-V3
Availability: In Stock
Instructions: (Adobe Reader required)
Regular Price: $599.95
On Sale Now: $539.96
Add Driven Diesel 7.3L High Flow Banjo Bolt Kit $98.96
Add FASS / AirDog II Install Kit $89.95
Add Replacement Return Hose $44.95
The Driven Diesel " Fuel Bowl Delete" Regulated Return Kit for the 99-03 Powerstroke Super Duty takes our popular "Standard" Regulated Return Kit to a new level. Just like our "Standard" version, this kit eliminates the "dead-head" stock fuel rails and provides adjustable fuel pressure capability to the Powerstroke fuel system. This is accomplished by tying the end of each fuel rail together through a Bypass Fuel Pressure Regulator. In addition, the "Bowl Delete" Regulated Return kit also eliminates the restrictive fuel filter bowl, eliminating common and annoying leaks, improving fuel flow to the heads and giving back some valuable engine valley room.

The primary benefits of this kit are significantly increased fuel flow "through" the heads, eliminating fuel delivery and noise issues associated with "Deadhead Fuel Rails" and ensuring that every fuel injector has adequate fuel quantity and pressure all the time. Additionally, any air that may develop in the fuel system can pass through the heads and out the regulators return port to the tank, instead of through the fuel injectors...resulting in increased injector life and less injector noise. If you are installing new injectors (stock or aftermarket), we HIGHLY RECOMMEND one of our Regulated Return kits to protect your investment and maximize your performance!

If your OEM metal fuel return line along your frame is damaged, rusted or leaking, and you want/need to replace it, see the PRODUCT OPTIONS section for the REPLACEMENT RETURN HOSE upgrade. This upgrade will provide you with enough 5/16" fuel line to run a fresh connection from the bottom of our fuel pressure regulator all the way back to your fuel tank.

Check out our High Flow Banjo Bolt Kits, they are a breeze to put in when you already have the truck apart for a Regulated Return installation.

NOTE: ADDITIONAL PARTS AND FILTRATION ARE REQUIRED when using this kit! See below for notes about specific common configurations:

If using a STOCK FUEL PUMP and STOCK or Stage 1/1.5 Injectors, you will need one of our "Pre/Post Fuel Filter Kits" (Click HERE).

If running Stage 2 or Larger Injectors, you will need one of our "High Volume Fuel Delivery Kits" (Click HERE) or another appropriately sized Fuel Pump/Filter Setup.

If using a high pressure FASS or AIRDOG II/4G/5G, you will need our "FASS / AirDog Install Kit" (Click HERE).

The most commonly reported results from the installation of an Driven Diesel Regulated Return Kit are:

• Quieter Engine Operation
• Improved Throttle Response
• Increased Power Output
• Increased Fuel Economy

Below are some of the key features of the Driven Diesel Regulated Return Kits:

• Driven Diesel Pre/Post Filter or High Volume Pump Kit Recommended!
• Compatible with FASS and AirDog 4G/5G Pumps (Install Kit Recommended)
• Compatible with Drop-In Upgrade and T4 Turbocharger Kits
• Compatible with Direct Replacement Single HPOP Setups
• Compatible with "Terminator" Twin (inline) HPOP Setups
• NOT Compatible with Vertically Stacked Dual HPOP Setups
• High Quality Fuelab Bypass Fuel Pressure Regulator Made in the USA!
• Custom Machined Fuel Bowl Delete Block Made in the USA!
• 3/8" CNC Bent S.S. Hard Line from Bowl Delete Block to Front Fuel Ports in Heads Made in the USA!
• 3/8" CNC Bent S.S. Hard Line Used at High Temperature / Tight Radius Rear Locations Made in the USA!
• High Quality 3/8" S.S. Braided Teflon Hoses with BLACK Protective Covering Made in the USA!
  (Black Covering Prevents Abrasion Damage to Hoses and Surrounding Parts)
• Custom T-304 S.S. Regulator Mounting Bracket Made in the USA!
• Custom T-304 S.S. Fuel Bowl Delete Block Mounting Bracket Made in the USA!
• Custom Driven Diesel Liquid Filled Fuel Pressure Gauge
• All Kits Feed Front Ports (away from Turbo Heat) and Return from Rear Ports
• Complete Kit with All Necessary Parts and Detailed COLOR Instructions
• NICEST REGULATED RETURN KIT AVAILABLE...PERIOD!

Made in the USA! Denotes Items that are 100% MADE IN THE USA!

NOTE: WITH THE EXCEPTION OF ITEMS LISTED IN THE FUEL SYSTEM COMPONENTS SECTION OF OUR WEBSITE, WE DO NOT SELL INDIVIDUAL PIECES OF OUR FUEL SYSTEMS.

BIO-DIESEL NOTE: While we've taken steps to significantly improve the bio-diesel compatibilty of our fuel system kits, we still recommend bio concentrations of B20 or less. Higher concentrations can negatively impact the glues used to assemble most fuel filter elements.

* - We make every attempt possible to source and use as much U.S. made product/material as we possibly can...as long as doing so doesn't sacrifice the quality of the final product. We can't always control where every component of one of our products comes from, but you count on us to keep looking for ways to increase the % of American Made parts and materials in the products that we produce.

Related Products

2 Total Related Products

Customer Reviews

(4.33)stars out of 5
# of Ratings: 12
(Only registered customers can rate)
1. on 9/15/2020, said:
4 stars out of 5
Excellent product. I have 390k Miles on my 01’ Platinum F250 with basically only a Banks intake system upgrade. I would give the product a higher rating but had too many leaks using the loctite on post pump filter. Teflon worked perfect and should be included in the kit for that portion if using a stock pump. The kit directions were excellent, couldn’t ask for much better. Installation took me about 12 hours only cause I had to remove, reseal and reinstall post filter...perfect now and placement perfect. Installation was fairly easy only tight spots around tubo and down pipes require some patience. Results, I installed the banjo bolts too and that was most difficult in the rear but the square socket did the trick. My truck did not sound quieter but I could feel an improved throttle response. Once I got all bonjo bolts installed, it took a few days, the engine felt smother than ever. The room to work and clean up in the valley is amazing; especially since I need to replace a weakening HPOP. I would do this again, hands down. Great product and even greater technical support from Strictly Diesel. I like these guys so much I drove from Texas to AZ to work with them as I visited family. They are my go-to shop for all things diesel. The staff and owners are true professionals!
Was this comment helpful?
(7 people found this comment helpful, 0 did not)
2. on 5/31/2015, said:
5 stars out of 5
Great kit, clean install! I bought this kit because my fuel bowl had a small crack by the outlet fittings. The truck has a long life ahead with only 140K so I never want to deal with a fuel bowl issue again. I am also impressed with the high quality of the components in the kit. Everyone advertises quality, Driven and Strictly live by it.
Was this comment helpful?
(13 people found this comment helpful, 0 did not)
3. on 10/23/2013, said:
5 stars out of 5
I bought this kit and the post and pre pump filter kits for a 2001 f250. All of the kits came with easy to follow directions. All of the parts were included. Veary easy to install. The only parts i had to get was fuel hose for the return line because i deleted all of the factory fuel lines. After installing these kits i noticed better performance, faster starts and less noise from the injectors. After installing this on my truck i bought the same kits for my dad 99 f250. If you have a 7.3 this is the only way to go to extend the life of the fuel system.
Was this comment helpful?
(9 people found this comment helpful, 0 did not)
4. on 9/24/2012, said:
5 stars out of 5
Great kit, not bad to install helped make starting easier and I don't have to worry about bowl leaks again.
Was this comment helpful?
(12 people found this comment helpful, 0 did not)
5. on 9/19/2012, said:
5 stars out of 5
I installed the fuel bowl delete system on my 02 F250 7.3. This was the best investment I have made for this truck. The performance is immediately noticeable and best of all NO MORE FUEL BOWL LEAKS!
Was this comment helpful?
(15 people found this comment helpful, 0 did not)
Showing comments 1-5 of 5
Frequently Asked Questions
You must sign in first to ask a question.

Driven Diesel 7.3L Fuel Bowl Delete Regulated Return Fuel System Kit fits the following vehicle(s):

  • 2000 Ford Excursion 7.3L
  • 2001 Ford Excursion 7.3L
  • 2002 Ford Excursion 7.3L
  • 2003 Ford Excursion 7.3L
  • 1999 Ford F250/350 Super Duty 7.3L
  • 1999.5 Ford F250/350 Super Duty 7.3L
  • 2000 Ford F250/350 Super Duty 7.3L
  • 2001 Ford F250/350 Super Duty 7.3L
  • 2002 Ford F250/350 Super Duty 7.3L
  • 2003 Ford F250/350 Super Duty 7.3L
  • 1999 Ford F450 Super Duty 7.3L
  • 1999.5 Ford F450 Super Duty 7.3L
  • 2000 Ford F450 Super Duty 7.3L
  • 2001 Ford F450 Super Duty 7.3L
  • 2002 Ford F450 Super Duty 7.3L
  • 2003 Ford F450 Super Duty 7.3L
  • 1999 Ford F550 Super Duty 7.3L
  • 1999.5 Ford F550 Super Duty 7.3L
  • 2000 Ford F550 Super Duty 7.3L
  • 2001 Ford F550 Super Duty 7.3L
  • 2002 Ford F550 Super Duty 7.3L
  • 2003 Ford F550 Super Duty 7.3L
