Driven Diesel Dual Filter Head Mount Kit

Part Number: DD-2BFFH-BKT-KIT
Availability: In Stock
Instructions: (Adobe Reader required)
Price: $329.95

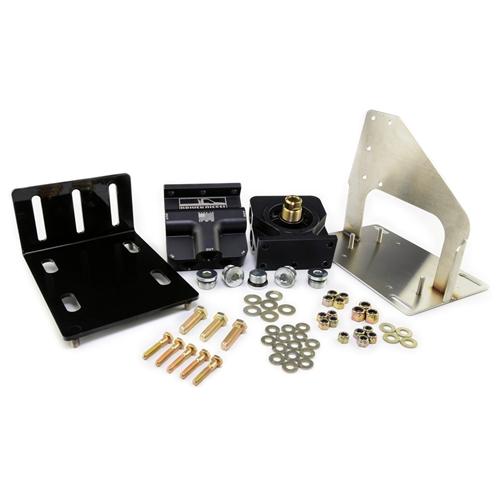

Ever since we upgraded our fuel filter and pump kits to feature our Driven Diesel Billet Fuel Filter Heads, we've been bombarded with requests to sell the heads and brackets individually. We finally have enough inventory of both to accommodate those requests! This kit mounts two of our filter heads using our "Adjustable" 2-piece bracket (requires drilling 3 holes in the bottom of the frame). Once mounted, the height of the filter plate has 1" of vertical adjustment and the frame plate has 2" of horizontal (in/out) adjustment, allowing for optimal clearance around the floor, e-brake cables or other obstructions on the frame. The kit includes the Heavy Duty Powdercoated Frame Mount, the T-304 S.S. Filter Mount, two Driven Diesel Billet Fuel Filter Heads and the nuts/bolts/washers to complete the installation on a typical truck.

The Filter Plate has (4) studs, which we use for mounting either (1) or (2) Bosch OEM Fuel Pumps (One Driven Diesel Pump Clamp Kit required per pump). There are also (4) holes, which line up with the pump mounting brackets supplied by Fuelab with their Prodigy series pumps.

VEHICLE FITMENT NOTE: This bracket requires a minimum of 7.5" of available height from the BOTTOM of the frame to the BOTTOM of the floor/body in the area where the filter heads will be located. Additionally, the frame bracket is designed for an open "C-Channel" style frame. Installation on a boxed frame may be possible using threaded inserts, but that hardware is not supplied with this kit.

PACKAGING NOTE: included hardware will allow for the installation of either Dual Bosch Pumps or a single Fuelab Prodigy Pump. The clamps for the Bosch style pumps are NOT INCLUDED. Add (1) Bosch Pump Clamp Kit per pump being used if needed.

Billet Filter Head Features and Benefits:
  • 6061 Billet Aluminum for Superior Strength
    • Eliminates Casting Porosity and Cracking
  • Standard -10 O-Ring Ports (4 IN / 3 OUT)
    • Maximum Configurability
    • Easy to Service O-Ring if Necessary
    • No Thread Sealant Hassles
    • No Cracks from Overtightening
  • 1"-14 Thread Filter Nipple
    • Compatible with Many Common Spin-On Fuel Filters
    • Baldwin, CAT, Fleetguard, WIX, Etc.
  • Integrated Seat for Suction Side D-Ring
  • Side Mounting Flange for Installation Flexibility
THIS PRODUCT IS INTENDED TO BE PART OF A DIY (do-it-yourself) PROJECT. IT IS NOT A COMPLETE FUEL SYSTEM PRODUCT, IT DOES NOT INCLUDE FITTINGS, HOSE, INSTRUCTIONS OR SYSTEM DESIGN GUIDANCE / TECHNICAL SUPPORT. CUSTOMERS ARE FREE TO USE ANY PUBLICLY AVAILABLE RESOURCES ON OUR WEBSITE TO AID IN DESIGNING AND INSTALLING THEIR CUSTOM FUEL SYSTEM, INCLUDING INSTALLATION INSTRUCTIONS, DIAGNOSTIC ARTICLES AND DESIGN ARTICLES.
