Driven Diesel Single Filter Head Mount Kit

Part Number: DD-1BFFH-BKT-KIT
Availability: In Stock
Price: $179.95

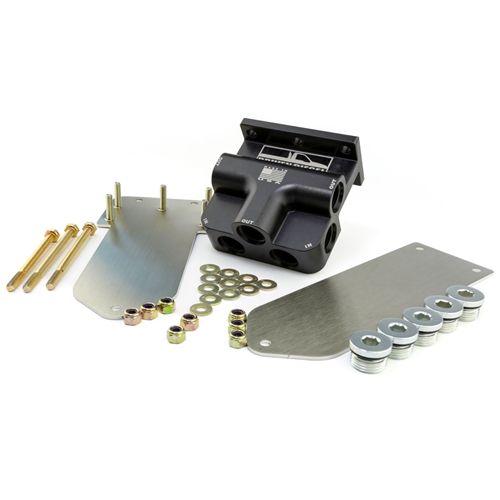

Ever since we upgraded our fuel filter and pump kits to feature our Driven Diesel Billet Fuel Filter Heads, we've been bombarded with requests to sell the heads and brackets individually. We finally have enough inventory of both to accommodate those requests! This kit mounts a single filter head using our "No-Drill" bracket (compatible with frames up to 8" tall). The top of the filter head will sit about 1/2" below the top of the frame, offering plenty of floor clearance. The kit includes the 2-piece T-304 S.S. Mounting Bracket, a single Driven Diesel Billet Fuel Filter Head and the nuts/bolts/washers to complete the installation on a typical width frame.

NOTE: longer or shorter bolts for mounting the bracket to the frame may be necessary if used on vehicles other than 1999-2007 Ford F250/350/450/550.

Billet Filter Head Features and Benefits:
  • 6061 Billet Aluminum for Superior Strength
    • Eliminates Casting Porosity and Cracking
  • Standard -10 O-Ring Ports (4 IN / 3 OUT)
    • Maximum Configurability
    • Easy to Service O-Ring if Necessary
    • No Thread Sealant Hassles
    • No Cracks from Overtightening
  • 1"-14 Thread Filter Nipple
    • Compatible with Many Common Spin-On Fuel Filters
    • Baldwin, CAT, Fleetguard, WIX, Etc.
  • Integrated Seat for Suction Side D-Ring
  • Side Mounting Flange for Installation Flexibility
  • Kits with Mounting Brackets Also Available!
THIS PRODUCT IS INTENDED TO BE PART OF A DIY (do-it-yourself) PROJECT. IT IS NOT A COMPLETE FUEL SYSTEM PRODUCT, IT DOES NOT INCLUDE FITTINGS, HOSE, INSTRUCTIONS OR SYSTEM DESIGN GUIDANCE / TECHNICAL SUPPORT. CUSTOMERS ARE FREE TO USE ANY PUBLICLY AVAILABLE RESOURCES ON OUR WEBSITE TO AID IN DESIGNING AND INSTALLING THEIR CUSTOM FUEL SYSTEM, INCLUDING INSTALLATION INSTRUCTIONS, DIAGNOSTIC ARTICLES AND DESIGN ARTICLES.
