Driven Diesel 6.0L V3 Fuel Bowl Delete Regulated Return Fuel System Kit

6.0L FUEL SYSTEM FLOW DIAGRAMS (opens in new window)
This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.
Part Number: DD-60FS-FBD-RRK-V3
Availability: In Stock
Instructions: (Adobe Reader required)
Price: $739.95
CARB EO #: D-872-2 (03-07 F250/F350/Excursion ONLY!)
CARB Approved - CARB EO# : D-872-2 (03-07 F250/F350/Excursion ONLY!)


The Driven Diesel "Fuel Bowl Delete" Regulated Return Kit for the 03-07 6.0L Powerstroke Super Duty takes our popular "Standard" Regulated Return Kit to a new level. Just like our "Standard" version, this kit eliminates the "dead-head" stock fuel rails and provides adjustable fuel pressure capability to the Powerstroke fuel system. This is accomplished by tying the end of each fuel rail together through a Bypass Fuel Pressure Regulator. In addition, the "Bowl Delete" Regulated Return kit also eliminates the restrictive stock fuel filter bowl, improving fuel flow to the heads and giving back some valuable engine valley room...particularly if you are also deleting the factory oil filter bowl by using a Bullet Proof Diesel oil cooler kit (or similar).

The primary benefits of this kit are significantly increased fuel flow "through" the heads, ensuring that every fuel injector has adequate fuel quantity and pressure all the time. Additionally, any air that may develop in the fuel system can pass through the heads and out the regulators return port to the tank, instead of through the fuel injectors...resulting in increased injector life and less injector noise. If you are installing new injectors (stock or aftermarket), we HIGHLY RECOMMEND one of our Regulated Return kits to protect your investment and maximize your performance!


Additional Parts and Filtration REQUIRED when using this kit! See below for notes about specific common configurations:

If your truck is still using the stock oil filter bowl, installation of this kit requires either MODIFICATION to your current oil filter bowl (cutting off the fuel filter bowl) or REPLACEMENT of your oil filter bowl (with one that doesn't have a fuel filter bowl attached to it). We have provided a convenient option above to simply add the replacement bowl to your order.

If your truck is no longer using the stock oil filter bowl, as in the case of running a Bullet Proof Diesel Oil Cooler Kit with a remote oil filter, use of this fuel bowl delete kit will allow complete removal of the entire oil/fuel filter bowl assembly from your truck.

This kit was NOT designed to be used with the STOCK fuel pump. Since the stock fuel pump contains a fuel filter, and replacement fuel filter cartridges must be purchased in pairs with the secondary fuel filter, it doesn't make sense to delete the secondary fuel filter bowl while continuing to purchase the fuel filter cartridges for it. If you wish to retain your stock fuel pump, we recommend retaining the stock secondary filter and using our "Standard" 6.0L Regulated Return Kit (click HERE).

If using one of our Driven Diesel High Volume Fuel Delivery Kits (HIGHLY RECOMMENDED...SEE RELATED PRODUCTS TAB ABOVE), you should have everything you need to complete the connection to this Fuel Bowl Delete Regulated Return. This Bowl Delete Regulated Return kit was specifically designed with our High Volume Fuel Delivery Kits in mind.

If using a high pressure FASS or AIRDOG II, you will need our FASS / AIRDOG II INSTALL KIT (see "Related Products" section above).

If using any other pump and filter configuration, it is your responsibility to make sure that you have adequate PRE & POST PUMP fuel filtration and water separation, that your pump is supplying adequate fuel volume and that you have the right #6 AN connection for the bowl delete block inlet.

The most commonly reported results from the installation of an Driven Diesel Regulated Return Kit are:

• Improved Throttle Response
• Increased Power Output
• Increased Fuel Injector Life

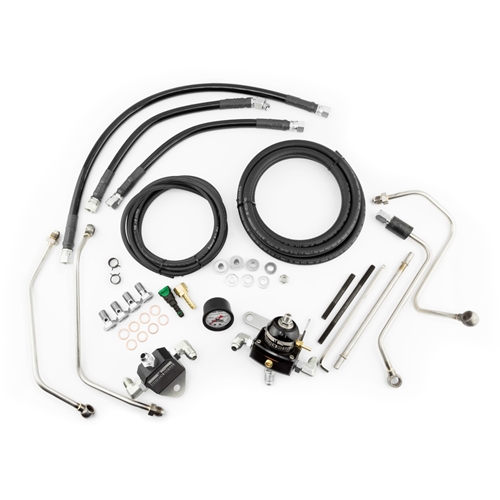

Below are some of the key features of the Driven Diesel Regulated Return Kits:

CARB Approved - CARB EO# : D-872-2 (03-07 F250/F350/Excursion ONLY!)
• Fits with Both Stock and Aftermarket Turbocharger Applications
• High Quality Fuelab Bypass Fuel Pressure Regulator Made in the USA!
• Custom Machined Fuel Bowl Delete Block Made in the USA!
• CNC Bent S.S. Hard Line Used in High Temperature and Tight Radius Locations Made in the USA!
• High Quality 3/8" S.S. Braided Teflon Hoses with BLACK Protective Covering Made in the USA!
  (Black Covering Prevents Abrasion Damage to Hoses and Surrounding Parts)
• Custom T-304 S.S. Regulator Mounting Bracket Made in the USA!
• Custom Driven Diesel Liquid Filled Fuel Pressure Gauge
• All Kits Feed Front Ports (away from Turbo Heat) and Return from Rear Ports
• Complete Kit with All Necessary Parts and Detailed COLOR Instructions

Made in the USA! Denotes Items that are 100% MADE IN THE USA!


BIO-DIESEL NOTE: While we've taken steps to significantly improve the bio-diesel compatibilty of our fuel system kits, we still recommend bio concentrations of B20 or less. Higher concentrations can negatively impact the glues used to assemble most fuel filter elements.

We make every attempt possible to source and use as much U.S. made product/material as we possibly long as doing so doesn't sacrifice the quality of the final product. We can't always control where every component of one of our products comes from, but you count on us to keep looking for ways to increase the % of American Made parts and materials in the products that we produce.

Customer Reviews

(0.00)stars out of 5
# of Ratings: 0
Frequently Asked Questions

Driven Diesel 6.0L V3 Fuel Bowl Delete Regulated Return Fuel System Kit fits the following vehicle(s):

  • 2003 Ford Excursion 6.0L
  • 2004 Ford Excursion 6.0L
  • 2005 Ford Excursion 6.0L
  • 2003 Ford F250/350 Super Duty 6.0L
  • 2004 Ford F250/350 Super Duty 6.0L
  • 2005 Ford F250/350 Super Duty 6.0L
  • 2006 Ford F250/350 Super Duty 6.0L
  • 2007 Ford F250/350 Super Duty 6.0L
  • 2003 Ford F450 Super Duty 6.0L
  • 2004 Ford F450 Super Duty 6.0L
  • 2005 Ford F450 Super Duty 6.0L
  • 2006 Ford F450 Super Duty 6.0L
  • 2007 Ford F450 Super Duty 6.0L
  • 2003 Ford F550 Super Duty 6.0L
  • 2004 Ford F550 Super Duty 6.0L
  • 2005 Ford F550 Super Duty 6.0L
  • 2006 Ford F550 Super Duty 6.0L
  • 2007 Ford F550 Super Duty 6.0L
