Driven Diesel Race Fuel Supply Kit (Fuelab)

This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.
Part Number: DD-SD-HPFDK-FL
Availability: In Stock
Instructions: (Adobe Reader required)
Price: $1,299.95
Fuelab Fuel Pumps are currently on back order from the manufacturer. You may place an order to get in line, but please be aware that we are not expecting delivery of pumps from Fuelab in the near future.

This Driven Diesel RACE Fuel Delivery Kit is designed to work with our FUEL BOWL DELETE Regulated Return Systems to support whatever horsepower you are trying to reach. Using the same Tried and True Fuelab Prodigy fuel pump we have been running for years, along with our new Compact Fuel Pump & Filter Mounting Bracket and either our 5/8" Drawstraw or our new Billet Sump, this kit provides everything you need to feed your hungry 7.3L or 6.0L Powerstroke truck.

NOTE: We no longer include the billet sump with the sump version of our fuel delivery kits. We have sumps available as additional options, but this change allows our customers to use any sump from any vendor, provided it will work with the industry standard fittings we have included in our kit (1/2" NPT or #8 O-Ring Boss). Feel free to choose from the sumps we are offering as options, or to source your sump from any supplier of your choice. Please note that sumps ordered from Strictly Diesel may not ship with the fuel delivery kit, and will arrive in a separate box, as we are not stocking every sump we offer.

Kit Features:
INCLUDES Proven Fuelab 41401-1 Prodigy Fuel Pump
• Option to Delete Fuel Pump If Desired
• Kit Also Works with Aeromotive A1000 Fuel Pumps!

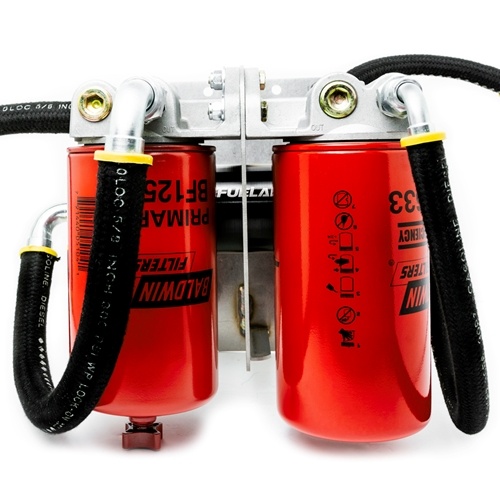

• Driven Diesel T-304 Stainless Steel "No-Drill" Mounting Bracket
• Rubber Isolator Mounts to Reduce Pump Noise / Vibration
• High Quality Filter Heads with Baldwin Fuel Filters
• Driven Diesel 5/8" Drawstraw -or- Fuel Tank Sump Hardware
• FUEL TANK SUMP SOLD SEPARATELY
• Driven Diesel Fuel Pump Wiring Harness
• ALL Necessary Hose / Fittings / Clamps / Hardware
• Full Color Installation Instructions

This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you may want to measure and verify that you have room before ordering, or plan on installing the kit on the OUTSIDE of the frame rail. In these cases, care will need to be taken with regard to the parking brake cable and fuel line routing, and some trucks may require slight dimpling of the underbody to prevent rubbing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting.

* 99-03 7.3L NOTE : This kit was designed to work with our very popular "7.3L Fuel Bowl Delete" Regulated Return Kit. As such, it does NOT include the proper fittings to supply fuel to the factory fuel filter bowl. We supply standard #6AN fittings for making the connection to the fuel inlet at the engine which will mate up perfectly with our 7.3L Fuel Bowl Delete Regulated Return Kit.

* 03-07 6.0L NOTE : Although this kit was designed to work with our new "6.0L Fuel Bowl Delete" Regulated Return Kit (in "pre-production" now, scheduled to be released in 2Q-2015), it is also possible to use it with our standard 6.0L Regulated Return Kit by utilizing the stock fuel supply line from stock fuel pump to the engine and removing the stock fuel filter cartridge and standpipe assembly from the secondary fuel filter bowl. See the instructions for more detailed information.

If you need to order replacement fuel filters for this kit, you can find them in the "Related Products" section below. This kit uses the Baldwin BF1252 "Pre-Pump" Fuel Filter/Water Separator and the Baldwin BF7633 "Post Pump" Fuel Filter.

STOCK NOTICE : Due to the large number of options within our "Race Fuel Delivery System" line (Fuelab or Dual Bosch, Pickup or Sump, Battery Terminal Size), we do not have these kits pre-assembled and ready to ship. Each kit will be BUILT-TO-ORDER, once the order has been received. PLEASE ALLOW 3-5 BUSINESS DAYS FOR ORDER PROCESSING, KIT ASSEMBLY AND SHIPPING. If you have a need that is more urgent, please call our office and discuss it with a member of our staff to confirm that we can meet your deadline before ordering. Thank You for your patience and understanding!

Some of the small parts and hardware may differ from the pictures above, we don't retake pictures each time small changes are made. The instructions included with the kit will have a complete and correct parts list.

Customer Reviews

(0.00)stars out of 5
# of Ratings: 0
Frequently Asked Questions

Driven Diesel Race Fuel Supply Kit (Fuelab) fits the following vehicle(s):

  • 2003 Ford Excursion 6.0L
  • 2004 Ford Excursion 6.0L
  • 2005 Ford Excursion 6.0L
  • 2000 Ford Excursion 7.3L
  • 2001 Ford Excursion 7.3L
  • 2002 Ford Excursion 7.3L
  • 2003 Ford Excursion 7.3L
  • 2003 Ford F250/350 Super Duty 6.0L
  • 2004 Ford F250/350 Super Duty 6.0L
  • 2005 Ford F250/350 Super Duty 6.0L
  • 2006 Ford F250/350 Super Duty 6.0L
  • 2007 Ford F250/350 Super Duty 6.0L
  • 1999 Ford F250/350 Super Duty 7.3L
  • 1999.5 Ford F250/350 Super Duty 7.3L
  • 2000 Ford F250/350 Super Duty 7.3L
  • 2001 Ford F250/350 Super Duty 7.3L
  • 2002 Ford F250/350 Super Duty 7.3L
  • 2003 Ford F250/350 Super Duty 7.3L
  • 2003 Ford F450 Super Duty 6.0L
  • 2004 Ford F450 Super Duty 6.0L
  • 2005 Ford F450 Super Duty 6.0L
  • 2006 Ford F450 Super Duty 6.0L
  • 2007 Ford F450 Super Duty 6.0L
  • 1999 Ford F450 Super Duty 7.3L
  • 1999.5 Ford F450 Super Duty 7.3L
  • 2000 Ford F450 Super Duty 7.3L
  • 2001 Ford F450 Super Duty 7.3L
  • 2002 Ford F450 Super Duty 7.3L
  • 2003 Ford F450 Super Duty 7.3L
  • 2003 Ford F550 Super Duty 6.0L
  • 2004 Ford F550 Super Duty 6.0L
  • 2005 Ford F550 Super Duty 6.0L
  • 2006 Ford F550 Super Duty 6.0L
  • 2007 Ford F550 Super Duty 6.0L
  • 1999 Ford F550 Super Duty 7.3L
  • 1999.5 Ford F550 Super Duty 7.3L
  • 2000 Ford F550 Super Duty 7.3L
  • 2001 Ford F550 Super Duty 7.3L
  • 2002 Ford F550 Super Duty 7.3L
  • 2003 Ford F550 Super Duty 7.3L
