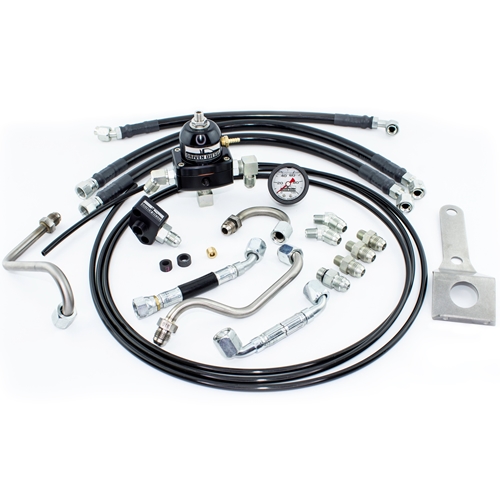

Driven Diesel 7.3L Standard Regulated Return Fuel System Kit

7.3L FUEL SYSTEM FLOW DIAGRAMS (opens in new window)
This item requires Vehicle Fitment, please select Vehicle first!
OR if you know the Part Number you need, select from Options below.
Part Number: DD-73FS-STD-RRK-V3
Availability: In Stock
Instructions: (Adobe Reader required)
Price: $699.95
The Driven Diesel Regulated Return Kit for the 99-03 Powerstroke Super Duty is an important part of the fuel system upgrade process. This kit eliminates the "dead-head" stock fuel rails and provides adjustable fuel pressure capability to the Powerstroke fuel system. This is accomplished by tying the end of each fuel rail together through a Bypass Fuel Pressure Regulator. The Driven Diesel Regulated Return Kit also includes replacement Fuel Feed Lines (from the fuel filter to the cylinder heads) that eliminate the stock Check Valves and the "kinks and crimps" of the stock feed lines.

The primary benefits of this kit are significantly increased fuel flow "through" the heads, eliminating fuel delivery and noise issues associated with the #8 injector and ensuring that every fuel injector has adequate fuel quantity and pressure all the time. Additionally, any air that may develop in the fuel system can pass through the heads and out the regulators return port to the tank, instead of through the fuel injectors...resulting in increased injector life and less injector noise. If you are installing new injectors (stock or aftermarket), we HIGHLY RECOMMEND one of our Regulated Return kits to protect your investment and maximize your performance!

The most commonly reported results from the installation of a Driven Diesel Regulated Return Kit are:

•Quieter Engine Operation
•Improved Throttle Response
•Increased Power Output
•Increased Fuel Economy

Below are some of the key features of the Driven Diesel Regulated Return Kits:

•Compatible with both "Stealth" and "Terminator" Twin HPOP Setups
•Compatible with "Stealth" Billet Single HPOP Setups
•EXCLUSIVE "No Cut" Return Fitting with Integrated Fuel Filter Air Bleed Made in the USA!
(Driven Diesel is the ORIGINATOR of the Custom Machined Filter Bowl Fitting!)
•High Quality Fuelab Bypass Fuel Pressure Regulator Made in the USA!
•3/8" CNC Bent S.S. Hard Line Used in High Temperature and Tight Radius Locations Made in the USA!
•High Quality 3/8" S.S. Braided Teflon Hoses with BLACK Protective Covering Made in the USA!
•Custom T-304 S.S. Regulator Mounting Bracket Made in the USA!
•Marshall Midnight Black Series Liquid Filled Fuel Pressure Gauge
•All Kits Feed Front Ports (away from Turbo Heat) and Return from Rear Ports
•Optional Fuel Bowl Delete can Easily be Added to this Regulated Return Kit Later
•Replacement Vibra-Lok Sleeves are Viton for Bio-Diesel Compatibility
•Complete Kit with All Necessary Parts and Detailed COLOR Instructions

Made in the USA! Denotes Items that are 100% MADE IN THE USA!


BIO-DIESEL NOTE: While we've taken steps to significantly improve the bio-diesel compatibilty of our fuel system kits, we still recommend bio concentrations of B20 or less. Higher concentrations can negatively impact the glues used to assemble most fuel filter elements.

* - We make every attempt possible to source and use as much U.S. made product/material as we possibly long as doing so doesn't sacrifice the quality of the final product. We can't always control where every component of one of our products comes from, but you count on us to keep looking for ways to increase the % of American Made parts and materials in the products that we produce.

Customer Reviews

(4.67)stars out of 5
# of Ratings: 3
1. on 10/23/2013, said:
5 stars out of 5
Great product. Very easy to install and the directions are easy to follow. This kits helped with hard start and improved performance, also it helped with the injector noise.
Was this comment helpful?
(9 people found this comment helpful, 1 did not)
2. on 9/25/2012, said:
5 stars out of 5
A must have product for the 7.3L Ford. It really quiets down the engine noise.
Was this comment helpful?
(13 people found this comment helpful, 0 did not)
Showing comments 1-2 of 2
Frequently Asked Questions

Driven Diesel 7.3L Standard Regulated Return Fuel System Kit fits the following vehicle(s):

  • 2000 Ford Excursion 7.3L
  • 2001 Ford Excursion 7.3L
  • 2002 Ford Excursion 7.3L
  • 2003 Ford Excursion 7.3L
  • 1999 Ford F250/350 Super Duty 7.3L
  • 1999.5 Ford F250/350 Super Duty 7.3L
  • 2000 Ford F250/350 Super Duty 7.3L
  • 2001 Ford F250/350 Super Duty 7.3L
  • 2002 Ford F250/350 Super Duty 7.3L
  • 2003 Ford F250/350 Super Duty 7.3L
  • 1999 Ford F450 Super Duty 7.3L
  • 1999.5 Ford F450 Super Duty 7.3L
  • 2000 Ford F450 Super Duty 7.3L
  • 2001 Ford F450 Super Duty 7.3L
  • 2002 Ford F450 Super Duty 7.3L
  • 2003 Ford F450 Super Duty 7.3L
  • 1999 Ford F550 Super Duty 7.3L
  • 1999.5 Ford F550 Super Duty 7.3L
  • 2000 Ford F550 Super Duty 7.3L
  • 2001 Ford F550 Super Duty 7.3L
  • 2002 Ford F550 Super Duty 7.3L
  • 2003 Ford F550 Super Duty 7.3L
